Large Potato Line – Throughput and storage

Line Description

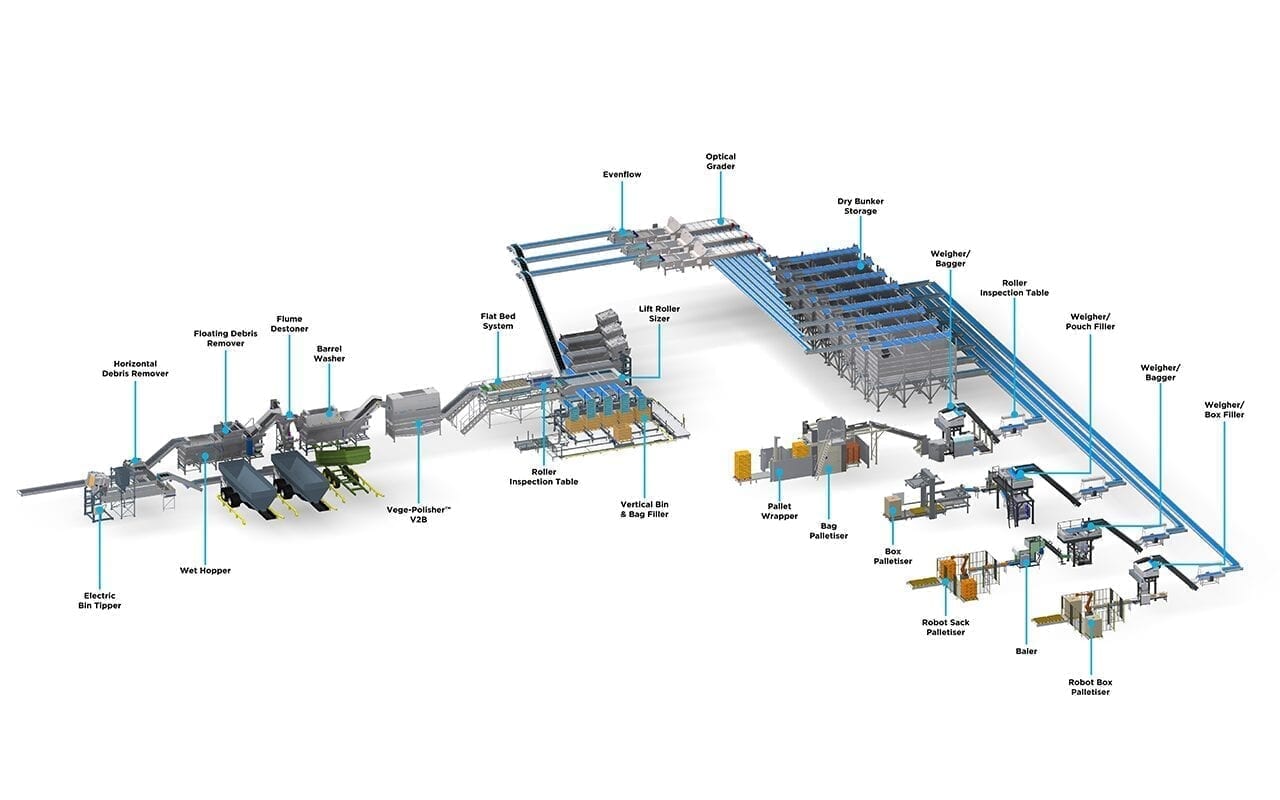

This 90-ton potato line demonstrates the scale and complexity required to process and handle large volumes of produce. Receiving is managed via large storage bins or directly from field harvest trucks. Potatoes are then soaked, destoned, washed and polished. A large flume network provides the transport solution at this stage, supported by a large Rotary Filter water recycling system. Potatoes are then conveyed, via an initial Optical Grader, to a pair of Hydro-Coolers. Chilling potatoes is a proven methodology to extend shelf life and, in this example, chilled potatoes are precisely sized and graded through the pairing of mechanical Lift Roller Sizer with an Optical Grading and Sizing system for maximum precision.

Sized produce is then transported via an Automated Bin Handling System to storage, or directly to final visual inspection, prior to weighing and bagging. Numerous options and configurations are available for this volume of produce and will depend upon individual requirements and environmental factors. To learn more about this line, or how Wyma may be able to assist you with your post-harvest needs, please contact your regional Wyma representative.

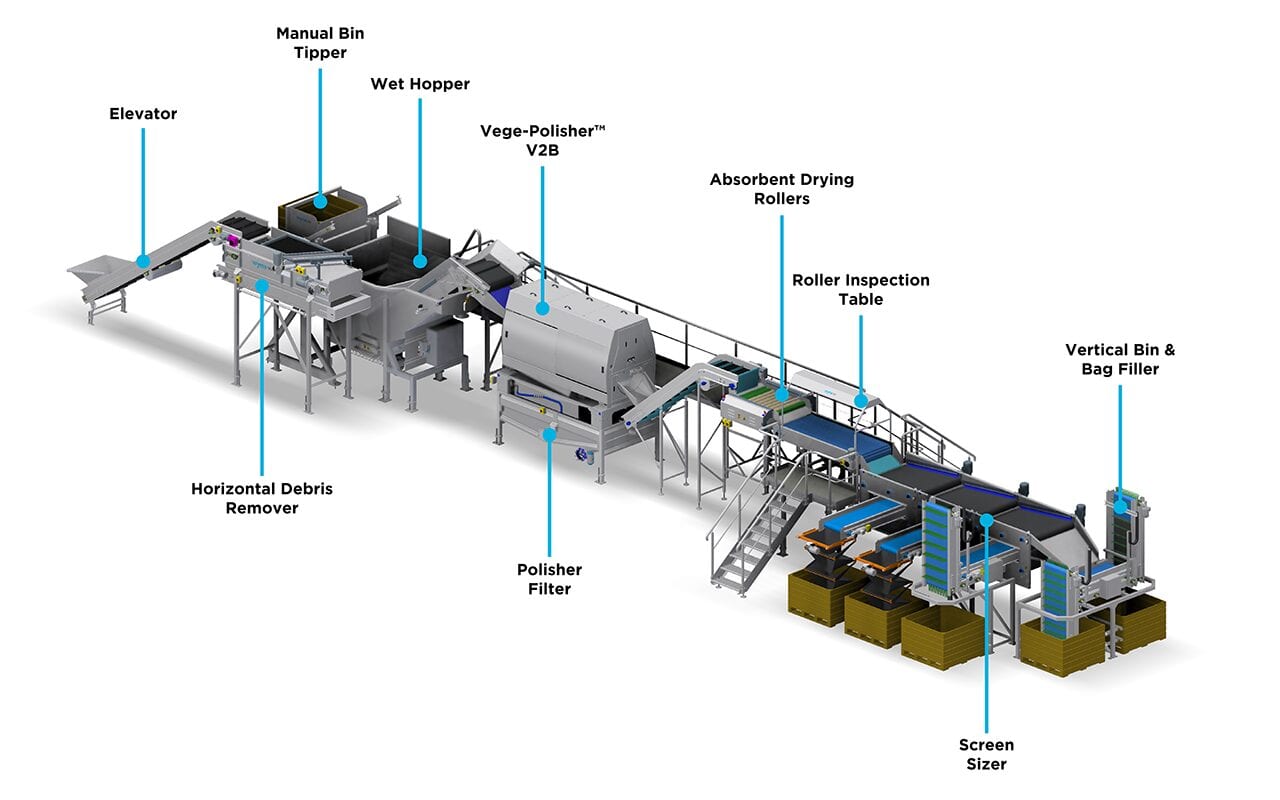

Key Equipment

• Web Elevator
• Manual Bin Tipper
• Horizontal Debris Remover
• Wet Hopper (2-ton)
• Vege-Polisher™ V2B
• Polisher Filter
• Belt Inspection Conveyor
• Screen Sizer
• Vertical Bin & Bag Filler
